Suspension Geometry Calculator

This utility can be used freely by any individual. Commercial use of this utility is strictly forbidden without the owners written consent. Email me at huwcdavies@hotmail.com for more information.

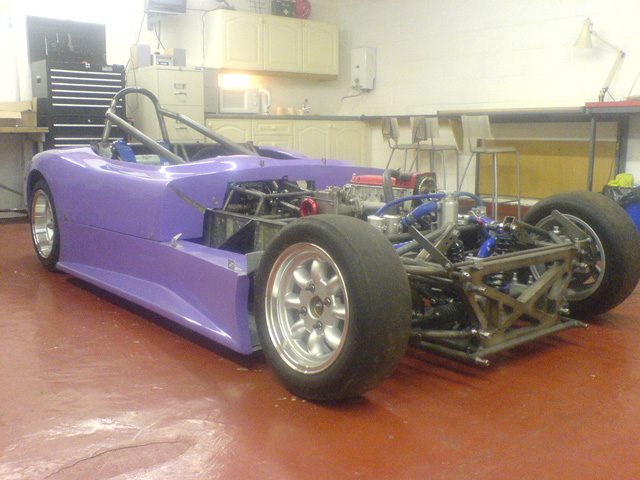

Normal settings (drag the icons to change pickup points)
Camber degrees

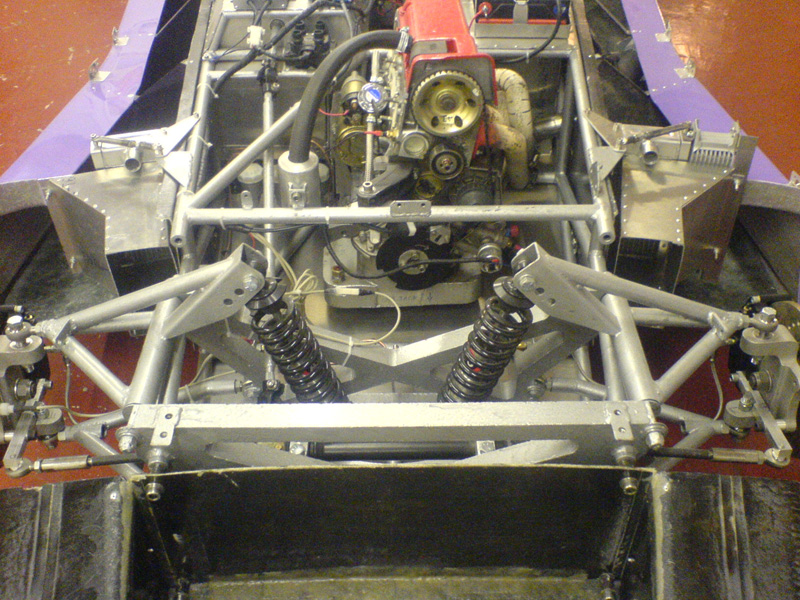

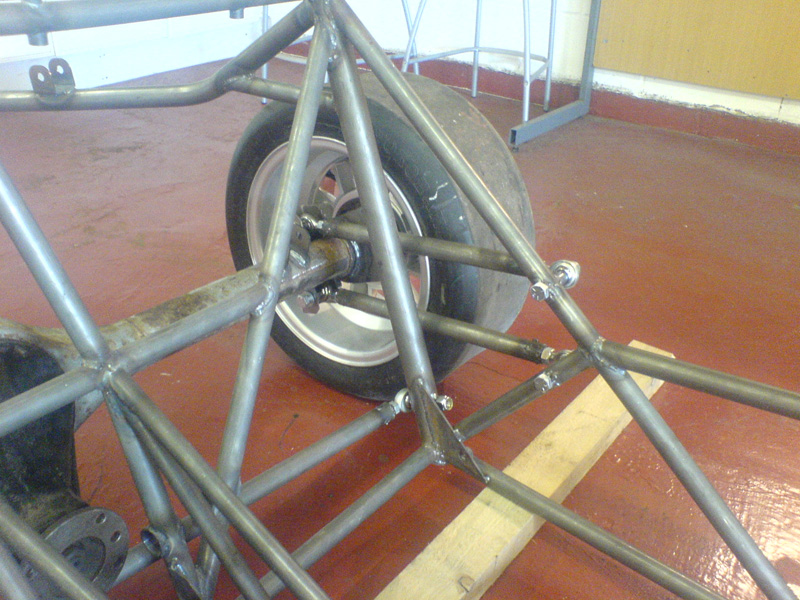

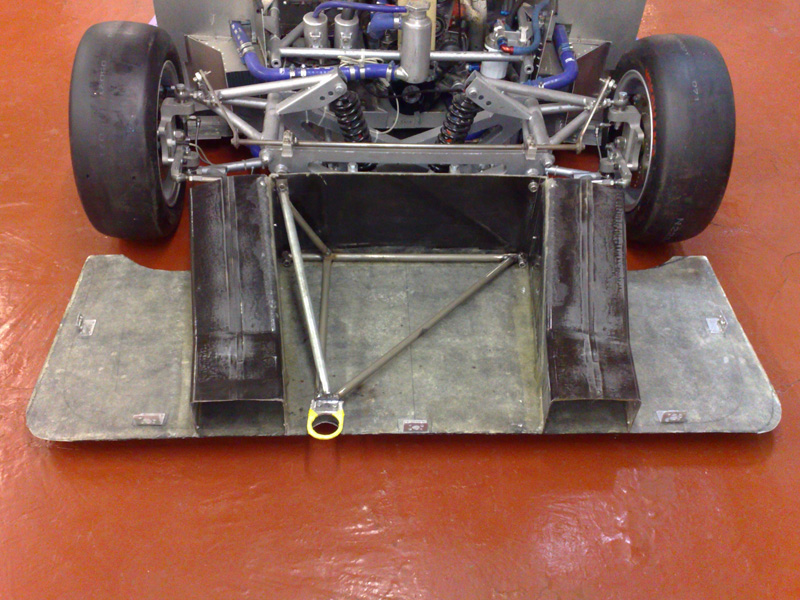

Upper wishbone length mm
Upper wishbone angle degrees
Lower wishbone length mm
Lower wishbone angle degrees

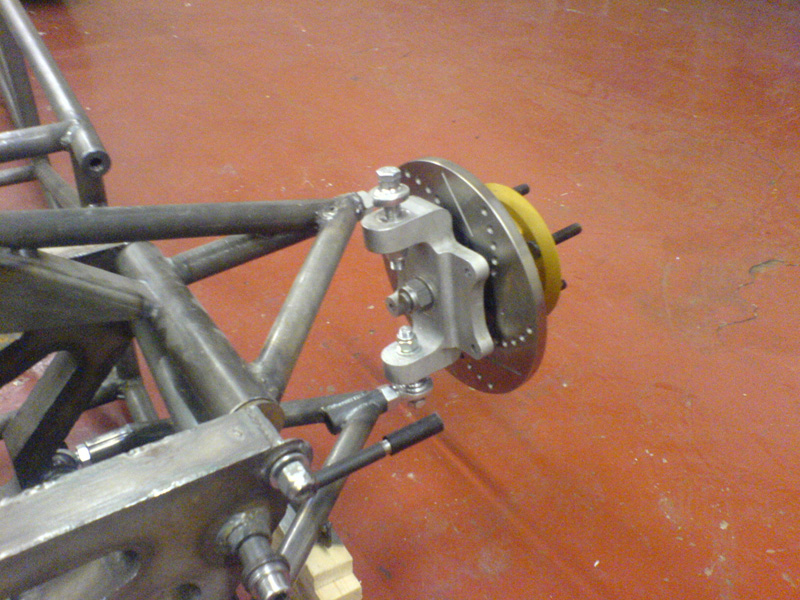

Distance between mounting points on hub mm
Distance between mounting points on chassis mm
SAL (distance between the intersection of wishbones and the hub) mm

Deflection (drag the icon up and down)
Vertical mm
Horizontal mm
Camber degrees

Scale

 Key Chassis Wishbones Hub


Links: Below is the url to link to this page retaining the current data. Feel free to add this link to your site.

Hints: From the Competition Car Suspension book.

Short SAL (500 – 1000mm) gives very good roll centre location, keeps the outer wheel vertical in corners, but going badly to positive camber in droop and negative in bump (accelaration squat and braking).

Long SAL (1800 – 4500mm) provides lower roll centres but less control over their sideways movement, minimal scrub (track variation), poor outer wheel control going into positive camber, but only small camber change in bump/droop.

Medium SAL (1000 – 1800mm) is the transition area between long and short with, as you might expect, a bit of this and a bit of that.

Ultra-long SAL (near parallel) provides excellent vertical control of very low roll centres but possible enormous sideways movement, wheel angles virtually unaltered in bump/droop but very poor control of wheels in roll, with near equivalency to body roll angle.
